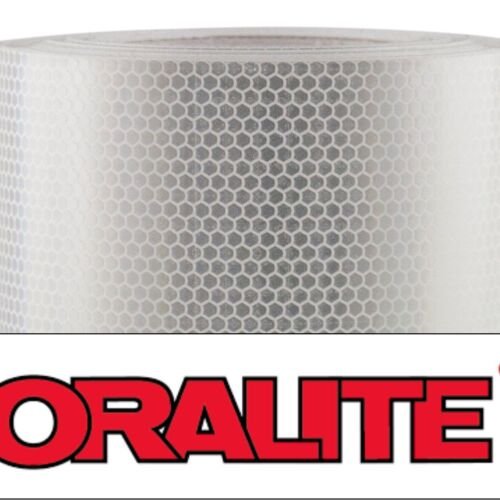

ORALITE® 5900 High Intensity Prismatic Grade

Starting at $616.50

Oralite 5900 High Intensity Prismatic Grade
  • Reflective prismatic film (RA2, C, 230 micron)
  • 9 colours
  • Durability: 10 years
  • Traffic control, guidance and information signs
  • Excellent resistance to corrosion and solvents
  • Solvent polyacrylate, permanent
  • Honeycomb structure




Available Options:

Description

Designed for the production of traffic signs for long-term outdoor exposure.

ORALITE® 5900
High Intensity Prismatic Grade

ORALITE 5900 High-Intensity Prismatic Grade Reflective Film is a 9-mil, 10-year film, featuring a clear, permanent adhesive designed for long-term reflective use on traffic control, guidance, warning, and informational signage. Series 5900 meets ASTM D 4956 specifications for Type IV, Class 1 retroreflective sheeting. This film has an excellent screen and UV printability and is available in 7 colors; white, yellow, orange, red, green, blue, and brown.



oralite 5900 reflective material signs, sign making, reflective signs distribution rolls

ORALITE 5900 High-Intensity Prismatic Grade Reflective Film is a 9-mil, 10-year film, featuring a clear, permanent adhesive designed for long-term reflective use on traffic control, guidance, warning and informational signage. Series 5900 meets ASTM D 4956 specifications for Type IV, Class 1 retroreflective sheeting. This film has an excellent screen and UV printability and is available in 7 colors; white, yellow, orange, red, green, blue, and brown.

Description
High-Intensity Prismatic Grade Reflective Film intended for long-term outdoor applications.

Release Liner
Polypropylene film, silicone-coated on one side (3 mil)

Adhesive
Solvent-polyacrylate, permanent

Areas of Use
Designed for the production of long-term traffic control, guidance, warning, and informational signs.

Printing Techniques
Screen and UV Printing

Thickness
9 mil

Temperature Resistance
Adhered to aluminum, -69°F to +180°F, no variation

Adhesive Power
(FINAT TM-1, after 24h average) applied to stainless steel: 3.4 lb/in

Outdoor Durability
10 Year

Seawaterability
Adhered to aluminum, after 100h/73°F, no variation

Resistance to solvents and chemicals
Adhered to aluminum, 8 hours in household cleaning agents at room temperature up to 149°F, no variation.

Minimum application temperature
50ºF

Surface finish
Gloss
Available: in White, Yellow, Fluorescent Orange, fluorescent yellow-green.
Print Compatibility: screen printing & digital UV printing

oralite-5900-high-intensity-prismatic-grade-4122-technical-data-sheet-americas-en
Print Friendly, PDF & Email

Additional information

Weight N/A
Price Per Sq Ft.

$1.37 Sq Ft / 450 ft² roll, $1.38 Sq Ft / 600 ft² Roll

Color

White, Yellow, Red, Orange, Blue, Green, Brown
