MUTCD Part 6 Explained: A Comprehensive Guide to Temporary Traffic Control (TTC)
For manufacturers and suppliers like Eastern Metal Signs and Safety, true authority comes from helping customers navigate compliance. This guide simplifies the Manual on Uniform Traffic Control Devices (MUTCD) Part 6—the national standard for work zone safety—to ensure your roadway projects are safe, legal, and efficient.
1. Understanding the Five Key Areas of a Work Zone
Every Temporary Traffic Control (TTC) zone, whether for utility work or major road construction, must be clearly separated into five distinct areas to guide traffic safely around the disruption:
A. Advance Warning Area
This area notifies drivers that they are approaching a work zone and must be prepared to stop or change lanes.
- Actionable Tip: The initial sign must clearly state the nature of the hazard (e.g., “Road Work Ahead,” “Utility Work”).
B. Transition Area
This is where traffic lanes are closed, and vehicles are merged into fewer lanes.
- Compliance Point: This area must use traffic control devices (cones, drums) to create a taper, guiding traffic smoothly. The length of this taper is critical and must adhere to MUTCD spacing standards based on the posted speed limit.
C. Buffer Area
The buffer is a safety space between the Transition Area and the active Work Area.
- Critical Role: This area is kept free of equipment and workers to provide protection for workers in case a motorist violates the taper.
D. Work Area
This is where the physical work—like pavement repair or utility access—takes place.
- Internal Control: Within this area, a separate traffic control plan should manage the flow of heavy equipment, construction vehicles, and workers to prevent internal site accidents.
E. Termination Area
This area allows traffic to resume normal conditions and speed.
- Final Signage: It must include a sign indicating that normal operations are resuming (e.g., “End Road Work”).
2. Essential Device Compliance and Placement
All temporary traffic control devices—including signs, cones, barrels, and barricades—must comply with the Federal Highway Administration’s MUTCD standards, as well as any state-specific requirements.
| Device Category | MUTCD Requirement / Standard | Eastern Metal Solution Focus |
|---|---|---|
| Signs | Must meet reflectivity and retroreflective standards (e.g., Diamond shape for warnings). | Our rigid and roll-up signs meet or exceed all MUTCD and state DOT visibility standards. |
| Barricades | Must be used to close, define, or channel a roadway. A-Frame Barricades are standard for Type I and Type II applications. | Our A-Frame legs are constructed from high-density polyethylene for durability and feature flashing light receptacles for visibility. |
| Flaggers | Flaggers have the same authority as a regulatory sign; their instructions must be obeyed by motorists. | We supply MUTCD-compliant Stop/Slow paddles and high-visibility PPE required for flaggers. |
3. Worker Safety and OSHA Compliance
Establishing authority means addressing worker safety, which falls under OSHA regulations but is integrated with MUTCD setup.
Best Practices for Worker Protection

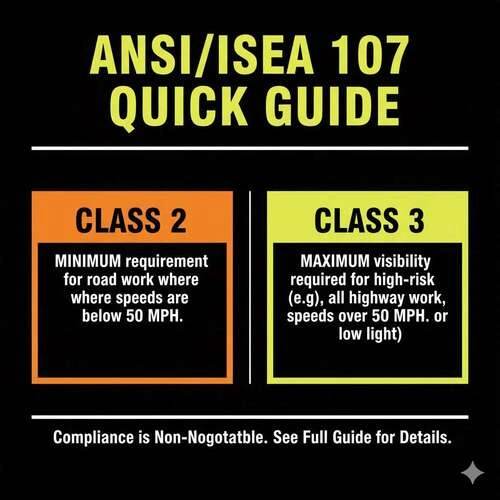

- High-Visibility PPE: All workers must wear highly visible clothing (fluorescent orange or lime/yellow) that meets ANSI Class 2 or 3 standards, especially for night work.
- Competent Person: An OSHA-defined Competent Person must be on the jobsite to identify and correct existing or predictable hazards. This person is also responsible for approving the proper type and class of traffic control devices and PPE.
- Blind Spot Awareness: Workers on foot must constantly be aware of the limited line of sight for equipment operators. The rule of thumb: “If you can’t see the driver, they probably don’t see you.”
Next Steps for Compliance: For a deeper dive into the required gear, consult our next guide on **ANSI High-Visibility Standards** and the specific PPE requirements for work zones.
